FreeWave TE
designed to shine

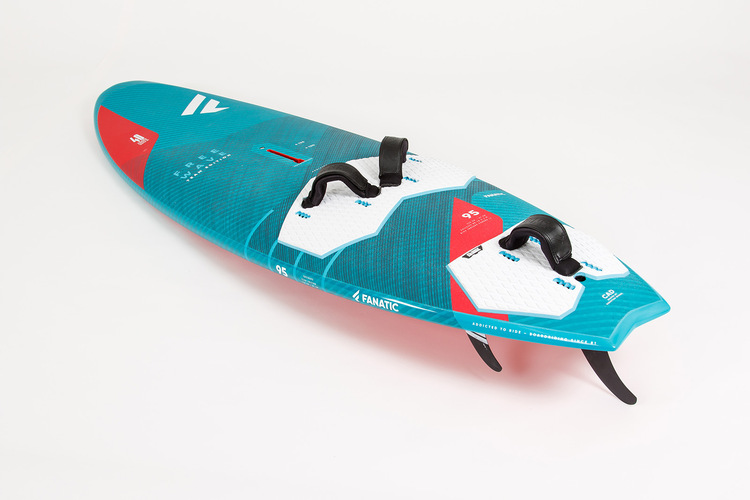

FreeWave TE
Sizes: 75 /85 /95 /105 /115
An evolution of the Stubby outline blended with our legendary FreeWave DNA, the all new 2020 FreeWave is the true chameleon – ready to adapt and excel in all conditions.
We took our low-drag FreeWave STB a step further and refined the nose and pulled in the tail shape, resulting in increased control and manoeuvrability that rivals any classic waveboard on the wave face. That left us room to increase planing power through its rocker line, making the 2020 range clearly the most powerful FreeWave of all times!
From flatwater blasting to bump & jump to waves, the new FreeWave is the one board that takes it all in its stride, and will boost your level across a bigger range of conditions than ever.
By far the best FreeWave ever
VICTOR FERNANDEZ - 3x PWA WAVE WORLD CHAMPION
FEATURES

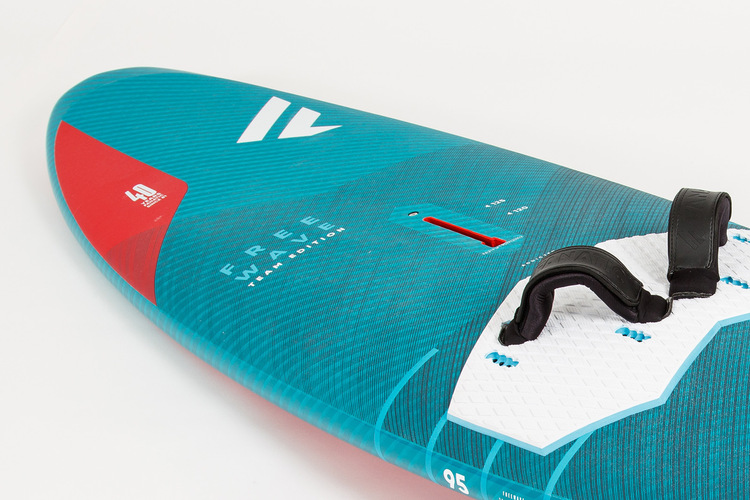

New Shape
Faster rocker
Bottom shape
Fin Options
Flat deck
Footstrap Options
Parallel outline
Trim
pulled in tail
Wide tail
Footpad
Premium Footstrap
New Shape
New Shape concept across the entire range, with added 75 litre version
Faster rocker
Faster rocker line boosts planing power especially on the larger sizes
Bottom shape
Very smooth and comfortable ride in chop thanks to constant V bottom shape with slight double concaves
Fin Options
Powerbox center fin and Slot Box side fins (with Slot Box covers) allow for use as a tri-fin or single fin
Flat deck
Great for classic freestyle moves thanks to the flat deck, neutral bottom shape and compact outline
Footstrap Options
Double back strap option (on the larger models - 95+) for flatwater blasting and true versatility
Parallel outline
Parallel outline design provides low drag and boosts control
Trim
Trim and stance provides snappy turning on the wave
pulled in tail
New pulled in tail shape and outline boosts manoeuvrability and control over previous FreeWave STB
Wide tail
The wide tail ensures incredible early planing and upwind performance
Footpad
Grippy and shock absorbing dual density diamond grooving footpads
Premium Footstrap
Comfortable and easy to adjust Fanatic Premium Footstraps
TECHNOLOGY
BXIC - BIAX INNEGRA CARBON LIGHT FINISH TECHNOLOGY
1 Light finish and weight saving graphics 2 90° fibre layer
3 45° Biax Innegra Carbon layer
4 Extra strong heel wood patch
5 Biax Innegra Carbon heel force patch 6 High density PVC sandwich core
7 Biax Innegra Carbon reinforcement
8 90° Glass reinforcement
9 Ultralight fibre layer
10 Super light EPS core
45/45 degree Biax Innegra Carbon fibre, with an additional 90 degree fibre weave layer on top. This combination of precisely placed fibres caters for a perfect balance of flex and stiffness. Extra wide Carbon and Innegra fibres with a linear alignment for best strength and efficiency of each individual fibre. Our unique Biax Innegra Carbon Light Finish technology has proven to be the ultimate construction for our Wave and Freestyle boards. Fanatic took the initiative to take the next technical step by introducing this new and exclusive high-end fibre finish into all TE models, meeting the high demands of our World Cup Team.
PERFORMANCE FEATURES
• Absorbs force from impact extremely well due to 45 / 45 degree weave, and achieves maximum strength via an extra layer of fibres on top with a 90 degree weave
• Added durability and 3 % stronger due to the woven fibre of the Carbon and Innegra
• Perfectly balanced (50 / 50). Strong, forgiving and impact resistant Innegra combined with a durable Carbon weave

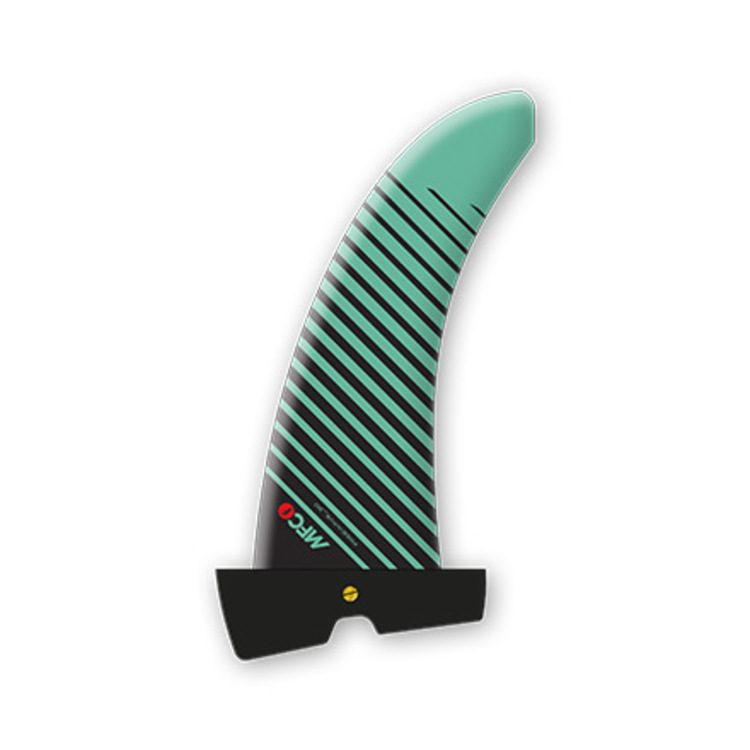

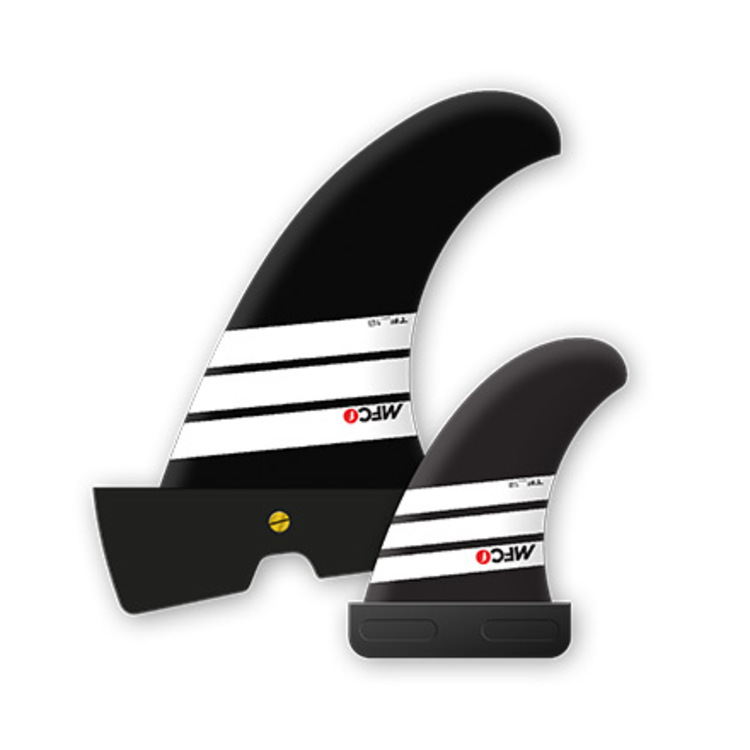

FINS
FreeWave TE 75 / 85 / 95 / 105
1x Power Box, 2x Slot Box 13 cm / 1x 18 cm / 19 cm / 20 cm / 21 cm, 2x 12 cm
FreeWave TE 115
1x Power Box, 2x Slot Box 13 cm / MFC 30 cm
FREEWAVE TE
specs
| FreeWave TE 75 | FreeWave TE 85 | FreeWave TE 95 | FreeWave TE 105 | FreeWave TE 115 |
| 75 l | 85 l | 95 l | 105 l | 115 l |
| 56 cm | 58.5 cm | 61 cm | 63 cm | 65 cm |
| 228 cm | 229 cm | 230 cm | 231 cm | 232 cm |
| 6.02 kg | 6.32 kg | 6.7 kg | 7.17 kg | 7.44 kg |
| 1x Power Box, 2x Slot Box 13 cm / 1x 18 cm, 2x 12 cm | 1x Power Box, 2x Slot Box 13 cm / 1x 19 cm, 2x 12 cm | 1x Power Box, 2x Slot Box 13 cm / 1x 20 cm, 2x 12 cm | 1x Power Box, 2x Slot Box 13 cm / 1x 21 cm, 2x 12 cm | 1x Power Box, 2x Slot Box 13 cm / MFC 30 cm |
| Up to 5.8 m² | Up to 6.0 m² | Up to 6.2 m² | Up to 6.8 m² | Up to 7.5 m² |
- 3005 C
- 151 C
pure fun in any kind of conditions
KLAAS VOGET - HEAD OF R&D
compare
Choose the FreeWave over the Stubby TE for:
More speed, quicker acceleration, easier to use and more suited to flatter water/bump & jump conditions. In wave conditions, the FreeWave will punch out through the white water better, as well as offering more control in choppy conditions and easier tacking due to the increased length.
Choose the FreeWave over the Blast for:
More manoeuvrable feel and wave performance. If you are looking to ride waves then go for the FreeWave. If you have no wave riding aspirations and only want to blast back and forth then go for the Blast!
